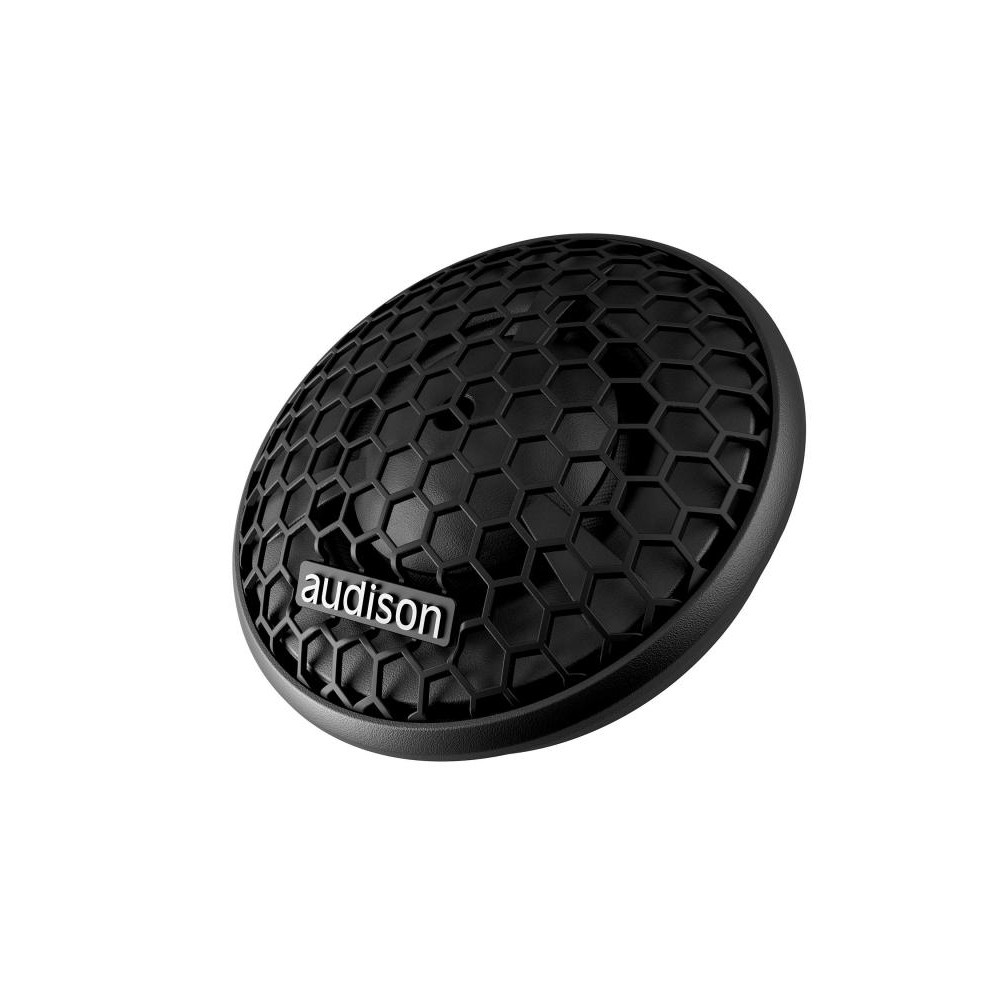

AP 1

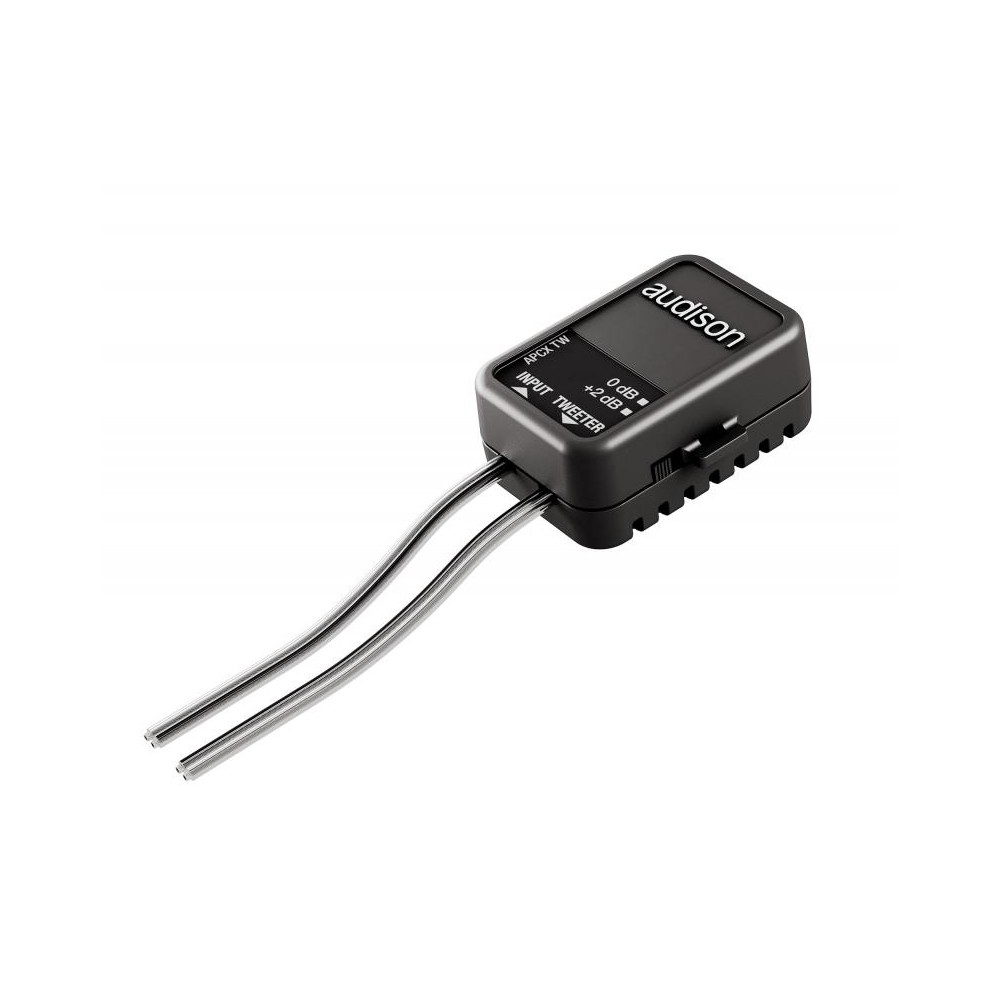

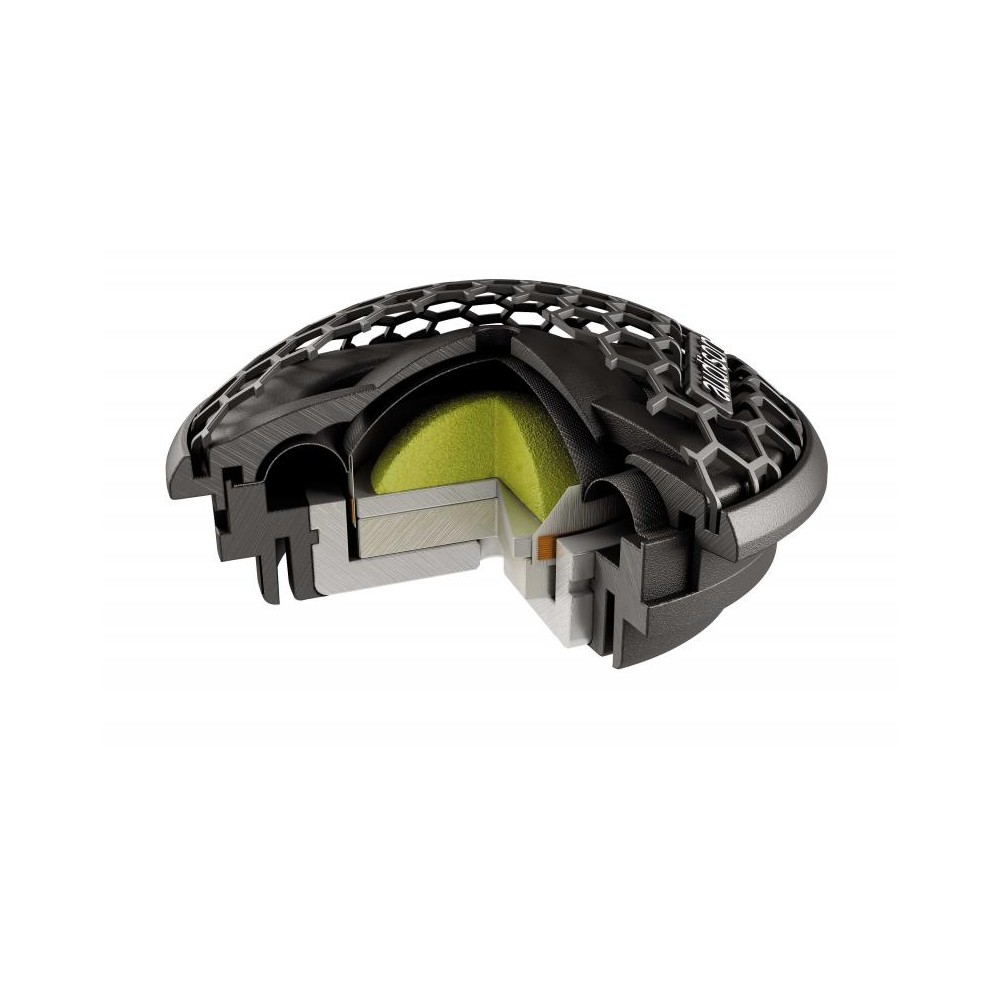

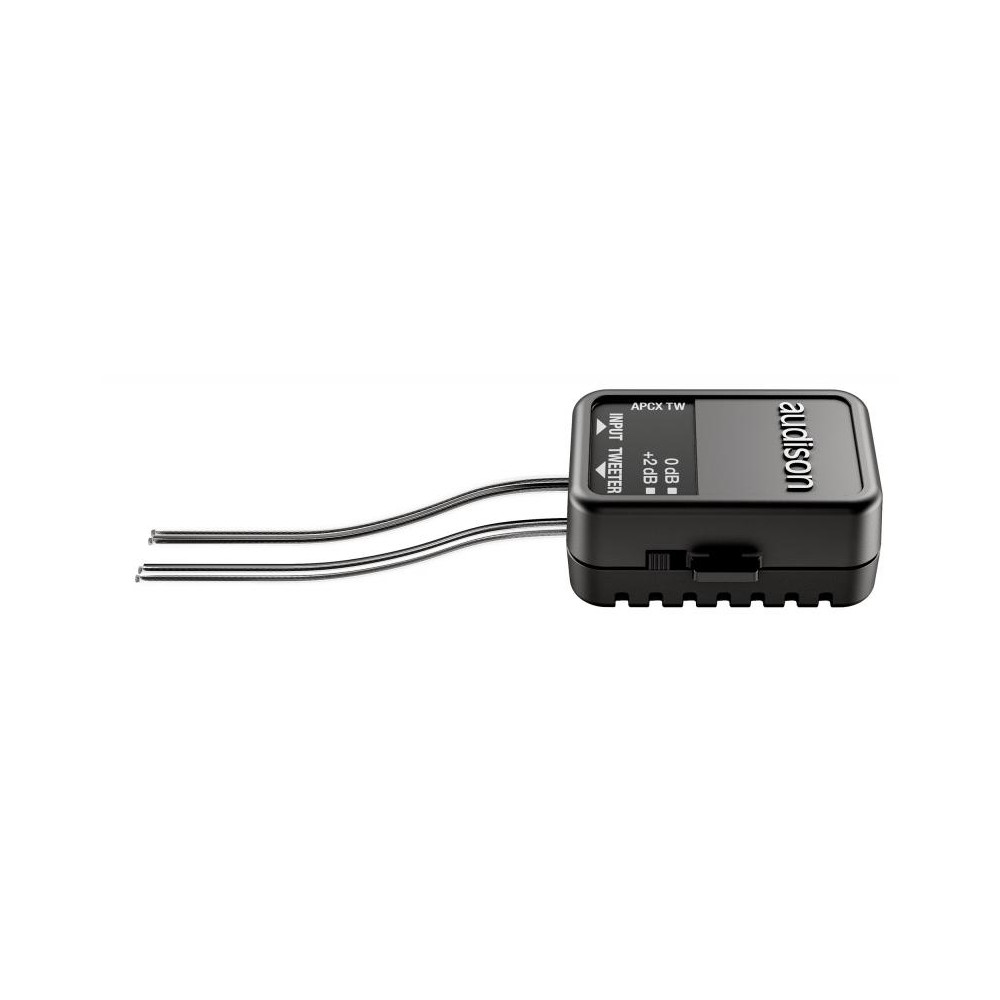

The AP 1 tweeter features a 26 mm diameter emission diaphragm, an acoustic lens designed to compensate for the frequency response within the 10kHz - 13kHz range, a Neodymium REN magnet and extremely small sized dedicated passive crossover.

Τεχνικά Χαρακτηριστικά

Comp: Tweeter
Size: 26 mm (1")
Power Handling: Hi-pass filtered 3.5 kHz @ 12 dB Oct. 150 W Peak Power
Impedance: 4 Ω
Frequency Response: 2k ÷ 20k Hz
Sensitivity: 93 dB/Spl
Magnet: Neodymium
Dome: Tetolon fibre
