HCE-C257FD

Front-View Camera . Μπορεί να εγκατασταθεί, σε ολες τις οθόνες που διαθέτουν είσοδο για Front Camera.

Camera Πολλαπλών Λήψεων.
Κάμερα ευρείας γωνίας με κιτ στερέωσης, 3 λειτουργίες λήψης: γωνιακή λήψη, όψη εδάφους, πανοραμική

• Λειτουργία αυτόματης απεικόνισης: ρύθμιση μέτρισης και εξισορρόπησης λευκού

• Διαστάσεις κάμερας: Π 23,6mm x Υ 23,6mm x Β 25,8mm , Γωνία πεδίου: οριζόντια 180° και κάθετη 142°, λειτουργεί με προϊόντα με είσοδο direct camera".

Key Features

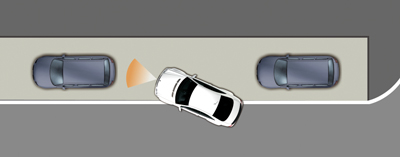

Panorama View displays a wide view in front of the car. Use this when you want to view a wider than normal area before the car.		Provides better visibility when coming out of ‘blind’ alleys or around obstructed corners. Especially useful for reducing blind spots with SUVs and minivans.

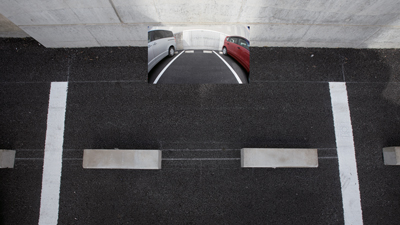

Top view is convenient for precise parking. There's also a picture-in-picture function that shows the regular front view in a small screen.		Lets you see right in front of your car to help in parallel parking and other situations.
Corner-view splits the screen so you have a clearer view of both left and right in front of the car. There's also a picture-in-picture function that shows the regular front view in a small screen.

More Features....

FEATURES

General
Frontview Image
Video Signal (NTSC) Output
Multi View Angle Selection: Panorama view, Corner view, Ground view.

Camera
Normal Image Output
Colour CMOS Image Sensor
Automatic Exposure Adjustment
Automatic White Balance Adjustment
Internal Synchronization.

SPECIFICATIONS

Dimensions
Camera: 23.6 x 23.6 x 25.8mm (excluding projection on the rear)

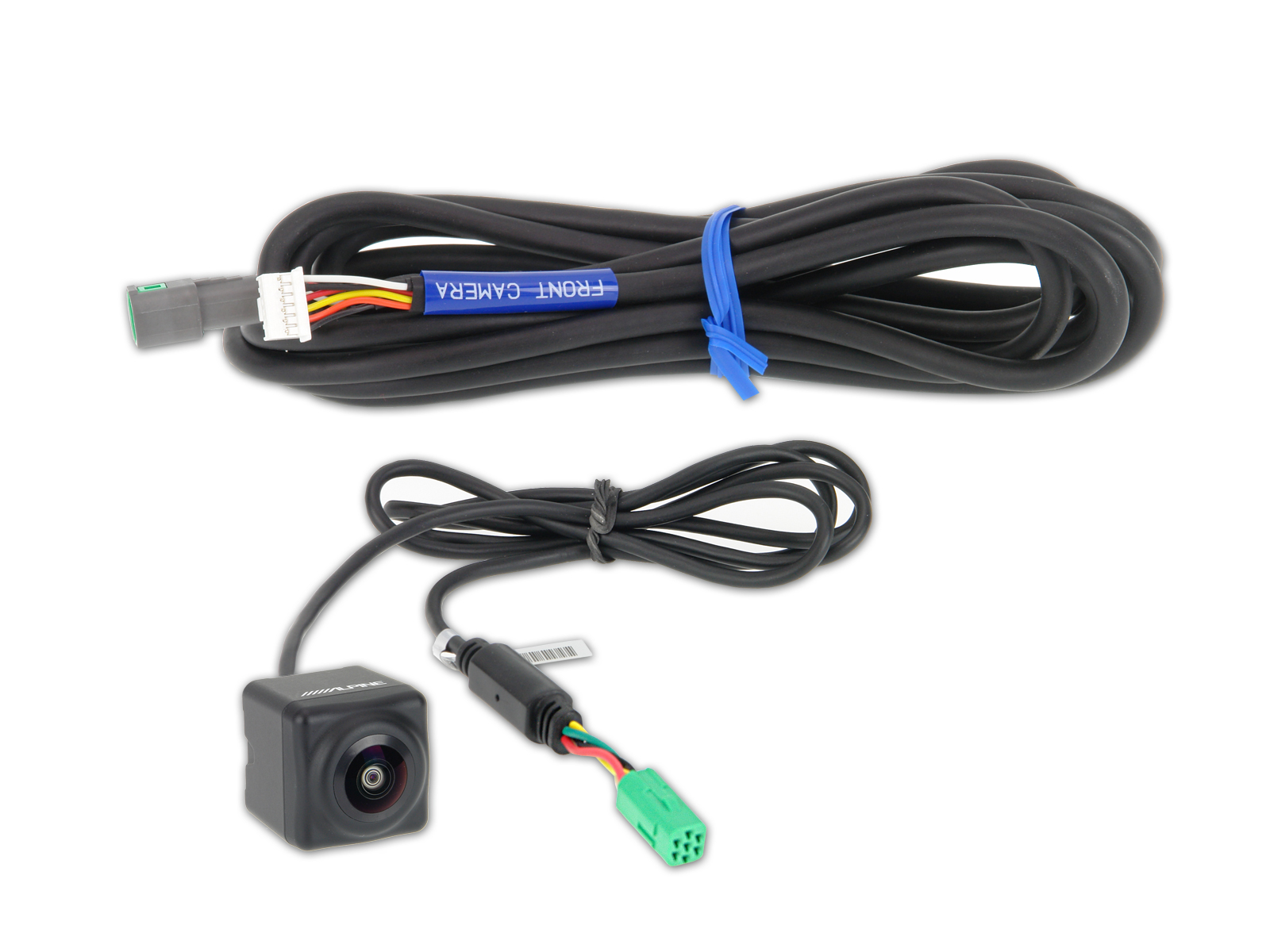

Camera Cable Length: 1m
Camera Extension Cable Length: 3m

General
Power Requirement: 6.0V DC (5.4 to 9.0VDC allowable)
Ground Type: Negative Ground
Max. Power Consumption: 0.8W (6.0V)

Camera
Output Image: Normal image, CVBS (NTSC Video signal)
Image Output Impedance: 75 Ohms (1Vp-p)
Image Sensor: 1/4" Type Color CMOS Image Sensor, Aspect Ratio 16:9
Effective Number of Pixels: 1280 (horizontal) x 720 (vertical) approximately 0.93 Mega pixels
Lens: Focal Length: f=0.9mm
Lens: Brightness: F=1:1.8
Angle of Field: Horizontal = 180° , Vertical = 142°
S/N Ratio: 41 dB or more
Resolution (Horizontal. Center Area): 330 TV Lines
Operating Temperature: -30°C - +70°C
Illumination Range: Approximatly 1.5Lx to 100kLx
Weight: 44g (including cable but not including bracket and screw)
