Alpine INE-F904DU8S 9” Floating Navigation Swivel Display for Fiat Ducato 8 featuring Apple CarPlay
Περιγραφή Προϊόντος
INE-F904DU8S: Made for Fiat Ducato 8
The new 2022 Fiat Ducato 8 has arrived and features an all-new dashboard and electronics system. Alpine already offers a tailor-made 9-Inch Media Receiver, featuring DAB+ digital radio, Apple CarPlay and Android Auto compatibility for Fiat Ducato 8, that ties-in perfectly to the Ducato 8’s dashboard and electronics. All required components for installation are included to make the installation as easy as possible.
INE-F904DU8S with Swivel Design: Made for Fiat Ducato 8
All required components for installation are included to make the installation as easy as possible, so the Halo9 ties-in perfectly to the Ducat 8’s dashboard and electronics. The included installation kit enables you to turn the monitor of your Alpine Halo towards the driver or co-driver. This simplifies destination input and improves display visibility even in direct sunlight for both driver and passenger.
Edge-to-Edge Glass Design
The amazing 9-inch display sits in a super slim housing with edge-to-edge glass and a nice chrome trim around the edge. Combined with the touch-responsive hard-keys on the bottom it makes the units stunningly beautiful and very modern in function and appearance.

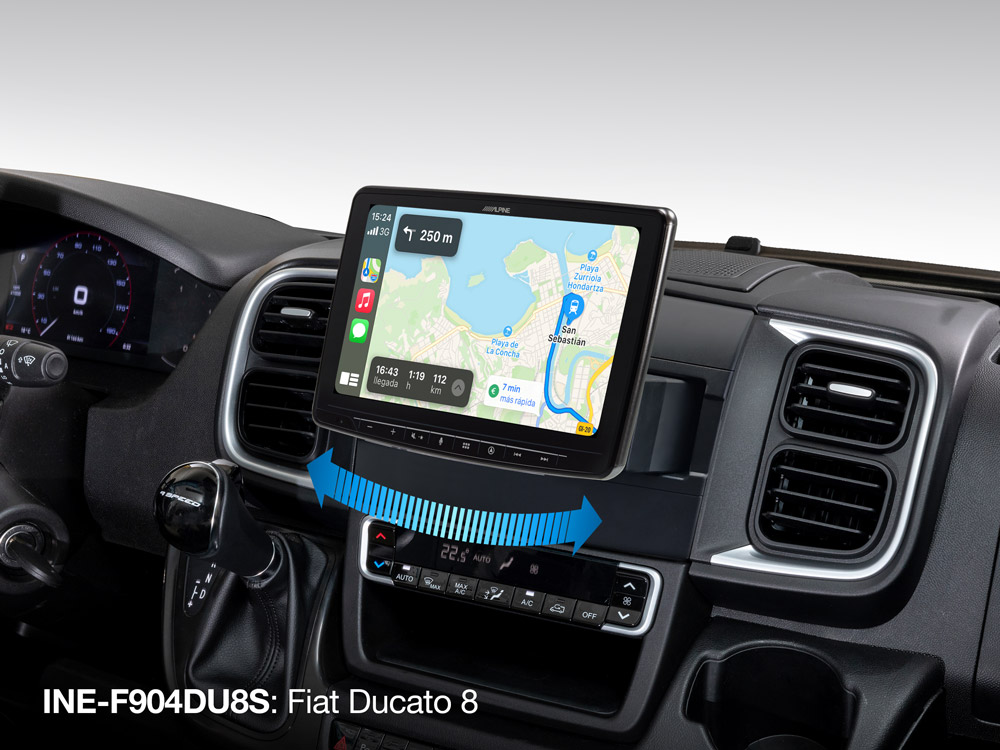

Adjustable Display Angle
You can adjust the INE-F904DU8S display angle from +45 degrees to -20 degrees to match a wide range of dashboard angle. After the display angle is set, it gets locked into place during installation to be rock-steady while driving over any terrain and when pushing with your finger on the display to control the unit.
Adjustable Display Height and Distance
The display height can be adjusted +/- 3cm from the center position. This allows fully standing or hanging display configurations as well as everything in between. You can also adjust the distance of the display to your dash in a 20mm range. After the display height and distance to the dash are selected, everything gets locked into place to be very solid.
Professional motorhome navigation
Your Alpine system comes wit pre-installed map data for 48 European countries. You can easily purchase additional countries and regions online to upgrade your database (incl. USA, Canada and many more). It features the latest iGo Primo nextgen navigation software and is compatible with both GPS and Glonass for highest location accuracy. The TomTom navigation maps provide free-of-charge updates for 3 years.
Selectable motorhome profiles
You can choose between 3 different motorhome profiles (S / M / L) or create your own profile by manually entering vehicle length, height, width and weight. The Alpine system will take the measures and weight of your vehicle into account and propose only routes suitable for your vehicle.
Built-in park4night database
The INE-F904DU8S comes pre-installed with park4night. The extensive database offers over 120.000 camping sites across Europe and works fully offline on the go anywhere you are. You can search right on your Alpine screen for your next camping site by category, country or region - along your route or at a final destination. Icons give you detailed information about the opening hours and available services of each camping site (such as WiFi, laundry or waste-water disposal availability) and you can see the distance, user ratings, comments and even images to pick the right camping site for your needs.
Lane guidance / TMC Route Guidance
Lane Guidance lets the driver know which is the best lane to be in, while Dynamic TMC Route Guidance provides live traffic information for avoiding traffic jams and recalculates the route if necessary.
Destinations by GEO coordinates
Many camping sites or sightseeing spots are away from major roads without any clear street address. By selecting destinations through GEO coordinates, you can reach any kind of destination even if there is no listed street nearby.
Connect your smartphone
The INE-F904DU8S is compatible with Apple CarPlay and Android Auto. This gives smartphone users an incredibly intuitive way to make calls, use navigation, listen to music and access messages with just a word or a touch. You can even enjoy Spotify, internet radio or podcasts while on the road for a truly connected experience.
Built-in DAB+ Digital Radio
The built-in DAB+ tuner uses the most advanced digital technology to deliver radio reception with outstanding, noise-free sound quality. DAB+ also offers many other advantages over traditional FM radio: choose from a much wider range of radio stations and after the initial station scan easily select your desired channels from an alphabetic or genre list of available stations.
Easy control from the steering wheel
If your Ducato is equipped with control buttons on the steering wheel, you can use them with the INE-F904DU8S as well. The Alpine system is fully connected to the vehicle’s electronics and accepts all steering controls such as volume control, telephone accept & decline buttons, voice control and audio mute.
Pre-Flight Check
Most damages to motorhomes occur, because the vehicle was not fully prepared for the road. Alpine’s on-screen Pre-Flight Check can be fully customized to your vehicle and reminds you before you start driving, to ensure that the gas is shut off, all tables and doors are secured, satellite antennas are retracted, etc.
Drive-Assist Cameras
A rear view camera is a great way to make reversing safer. The camera image automatically comes on when you shift into reverse and distance guides that can be adjusted to match your Ducato’s size will appear on the screen to help you safely park your motorhome. Alpine offers a wide variety of front and rear facing cameras, including multi-view cameras with selectable viewing angles. You can even view the camera screen and parking sensor screen simultaneously, if your car supports it.
LIN Bus Adapter to Retain Fiat Ducato Wireless Charger
Most damages to motorhomes occur, because the vehicle was not fully prepared for the road. Alpine’s on-screen LIN Bus Adapter to Retain Fiat Ducato Wireless Charger can be fully customized to your vehicle and reminds you before you start driving, to ensure that the gas is shut off, all tables and doors are secured, satellite antennas are retracted, etc.
Custom-fit frame and installation brackets for Fiat Ducato 8 included
The INE-F904DU8S includes a custom-fit frame, installation brackets, wiring harness with CAN interface and an antenna adapter. The CAN interface retains usage of the steering wheel remote control buttons.
Τεχνικά Χαρακτηριστικά
Tuner
- Memory Presets: Preset Stations (FM: 12 / MW: 6 / LW: 6)
- Memory: Auto Memory
- Seek Mode: Local / DX Selection
RDS
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB Tuner
- DAB+ Tuner Built-in
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (where available)
- Service Preset: 18 Preset Memory
- Service Search Function
- PTY Search Function
- Alphabet Search Function
- Antenna Power Supply Selection
BLUETOOTH®
- Built-in BLUETOOTH® Module
- HFP (Hands-Free Profile) Compatible
- Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
- Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
- Connection: SSP (Simple Secure Pairing) Supported
- Phone Book: Phone Book Synchronization
- Speed Dial: 4 Preset Memory (per phone)
- Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
- Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
- Menu Language Selection: 24 Languages
Made for iPod® / iPhone®
- Connection: KCU-471i Required (Sold separately)
- Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
- Alphabet Search
- Artwork Display
Connectivity
- Works with Apple CarPlay (requires CarPlay enabled iPhone)
- Works with Android Auto (Requires Android Auto enabled smartphone)
Navigation Functions
- Map Coverage: 48 Countries (Western and Eastern Europe) by TomTom maps
- Included park4night database
- Preflight Check
- Motorhome profiles
- 3 years free-of-charge map update
- Menu Language: 29 Languages
- Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
- Advanced Address Search
- Post Code Search
- Smart Routes: Smart Routes using historic traffic patterns
- Advanced Route Planning
- Advanced TMC Mode
- Map Display Mode: 2D Heading Up, 2D North Up, 3D
- 3D City Mode: 3D Building/Icon Display
- Elevation Map Display: 3D maps with elevation mode
- 3D Motorway Junction View: Junction View with Sign Post
- Drive Lane Suggestion
- Voice Guidance Mixing
- Text-to-Speech
- 3 Positioning Sensors: GPS / Glonass, Gyroscope, Vehicle Speed Pulse
USB Media Connection
- USB Extension Cable Included
- Music Playback: FLAC/MP3/WMA/AAC compatible
- Video Playback: MP4 compatible
- File / Folder Name Search
- Tag Info Search
Sound Tuning
- Bass Engine SQ
- Bass Engine™ Pro
- 4V High Voltage PreOut
- Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
- 6 Channel Digital Time Correction
- Digital Crossover Setting
- MediaXpander
- Application Volume Level Setting
General
- Power Output: 4 x 50 W High Power Amplifier
- Display: 9-inch Capacitive WVGA High Resolution Display
- White LED Backlighting System
- Control Type: Touch, Drag, Flick
- AUX-In: 1 A/V AUX Input (3.5mm micro jack)
- Steering Wheel Remote Control Function
- Vehicle Display Interface Ready (UART connection)
- Camera Connection & Built-in Controls for Multi-View Cameras
- Camera Guide Line Adjustment
- Rearview Camera Display Automatic Boot-up
- Menu Language: 24 Languages (for AV / Bluetooth),
- Anti-theft security code
- HDMI Input (Alpine Special HDMI connector required)
- Engine Start-Stop unaffected
Installation
- Includes Plug-and-play wiring harness to connect an Alpine Head Unit to the Fiat Ducato 8 electric system
- Includes steering wheel remote control interface to enable operation of your Alpine Halo system from your steering wheel buttons (including phone operation)
- Custom-fit metal brackets to mount the Halo unit
- Plastic trim panel
- LIN Bus Adapter KWE-Qi-DU8 (sold separately) needed for Ducato original Qi phone charger to work with Alpine system
SPECIFICATIONS
Screen
- Screen Size: 9-inch Capacitive WVGA
- LCD Type: Transparent Type TN LCD
- Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
- Colour System: NTSC, PAL
Max Power Output Ratings
- Max Power Output: 4 x 50 W
FM Tuner
- Tuning Range: 87.5 - 108.0 MHz
- Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
- 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB
MW Tuner
- Tuning Range: 531 - 1,602 kHz
- Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf
LW Tuner
- Tuning Range: 153 - 281 kHz
- Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf
USB
- USB Requirements: USB 2.0
- Max. Power Consumption: 1,500 mA (CDP Support)
- USB Class: Mass Storage Class, Play From Device
- File System: FAT 16/32
- MP3 Decoding: MPEG-1/2 AUDIO Layer-3
- WMA Decoding: Windows Media™ Audio
- AAC Decoding: ACC-LC format ′′.m4a′′ file
- FLAC Decoding
- Number of Channels: 2-Channel (Stereo)
- Total Harmonic Distortion (at 1kHz): 0.008%
- Signal-to-Noise Ratio: 100 dB
GPS / Glonass
- GPS / Glonass compatible navigation antenna included
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V2.1+EDR
- HFP (Hands Free Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
Sound Tuning
- Subwoofer Level Adjustment: 0 to +15
- Subwoofer Phase Setting: 0° or 180°
- BASS ENGINE SQ: 5Mode, Level 0 to +6
- HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- HighPassFilter (Gain): -12 to 0 dB
- LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- LowPassFilter (Gain): -12 to 0 dB
- Time Correction: 0.0 - 9.9ms (0.1ms step)
- Dual HD EQ Front + Rear
- Parametric Equalizer (Band 1): 20 - 100 Hz
- Parametric Equalizer (Band 2): 63 - 315 Hz
- Parametric Equalizer (Band 3): 125 - 500 Hz
- Parametric Equalizer (Band 4): 250 - 1k Hz
- Parametric Equalizer (Band 5): 500 - 2k Hz
- Parametric Equalizer (Band 6): 1k - 4k Hz
- Parametric Equalizer (Band 7): 2k - 7.2k Hz
- Parametric Equalizer (Band 8): 5.8k - 12k Hz
- Parametric Equalizer (Band 9): 9k - 20k Hz
- Parametric Equalizer (Gain): -14 to +14
- Application Volume Level Setting: -14 to +14
HDMI Section
- Input Format 480p / VGA
General
- Power Requirement: 14.4 V. DC (11-16V allowable)
- Pre Output Voltage (Before Clipping): 4 V / 10k ohms
- Maximum Mounting Angle: 30°
Dimensions
- DIN Size: 1DIN chassis and 9” Capacitive Touch Screen
- Chassis Size (W x H x D) mm: 178 x 50 x 160 mm
- Nose Piece Size (W x H x D) mm: 235.2 x 152.2 x 19 mm
Compatible Cars
Note:
-
For vehicles with radio preparation or “open dash” configuration (without radio).
