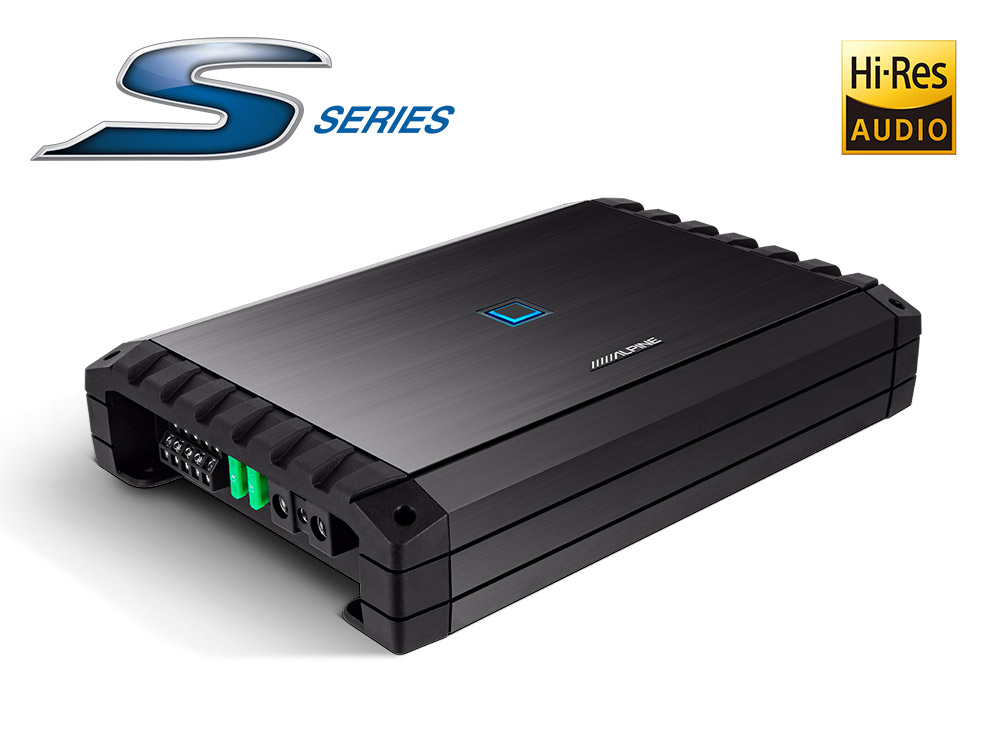

Alpine S2-A60M S-Series Mono Power Amplifier
Περιγραφή Προϊόντος
High- and low-pass filters put you in command of the frequency spectrum that reaches your speakers and subs. The amp includes pre-amp- and speaker-level inputs, so you can install it in almost any vehicle, even one with a factory radio. When using the speaker-level inputs, the amp can sense the incoming signal and turn itself on, eliminating the need to run a separate turn-on wire to the receiver or fuse box.
Alpine S-Series amplifiers are available in two mono, a 4-channel and a 5-channel configuration.
The New 2023 S-Series Amplifiers
Entry-level sound just got elevated with the S2-A55V 5-Channel Amplifier. Its sleek redesign houses an Alpine Class-D amplifier circuit and is now certified for Hi-Res Audio.
Hi-Res Audio Certified
The Next-Gen Alpine S-Series S2-A55V 5-Channel Amplifier is Hi-Res Audio certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth coupled with the elevated S-Series design brings out a new benchmark for entry-level performance and price.
Flexible Application
The Next-Gen S-Series amplifiers now feature a new selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times. This design is crucial with newer, in-vehicle technology and allows for proper integration with any factory or aftermarket system.
Easy Control Access
The amplifier was intentionally designed with sound controls located on the side panels, instead of the top panel, making it easier to access gain and crossover controls when installed under vehicle seats or in shallow-depth locations. Removable end-caps were added to cover the side controls and connections, providing a clean, sleek finish to the amplifier.
Power a Full System
With its versatile 5-channel design, the S2-A55V Amplifier is the perfect solution to power your sound system all in a single chassis. This amplifier delivers crisp and clear audio to up to four speakers plus an additional subwoofer to give your system a complete audio upgrade.
Made for S-Series Speakers & Subs
The S-Series amplifiers are designed to perfectly match the Alpine S-Series speaker and subwoofer line for perfect system building. S-Series components are designed to for customers that want to build a great sounding system without breaking the bank, for a fun and great sounding experience including Hi-Res Audio capabilities.
Χαρακτηριστικά & Λεπτομέρειες
FEATURES
Install
- Terminal Layout: Two-sided
- Included terminal covers
- Screw terminals (for speaker and power cables)
General
- Class-D Amplification (Digital)
- Hi-Res Audio Certified
- Channel Design: 5/4/3 Channel
- Side panel controls
- Thermal Management Control
- Top Mounted LED Power/Status Indicator
- Speaker Level Input
- 3 turn-on modes (DC HI, Remote HI, Remote LO)
- Input Channel Selector Switch for Subwoofer
- Crossover: Variable Low-pass Filter (LPF) and High-Pass Filter (HPF),
- Adjustable Gain Control
- Bass EQ
- Remote Bass Control (RUX-KNOB2) Ready (for channel 5 only)
SPECIFICATIONS
RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 60W + 1 x 300W
- Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 40W + 1 x 200W
- Bridged, 4 Ohms, 14.4V: 2 x 120W
Sound Tuning
- Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct / -24dB/oct for subwoofer)
- Bass EQ (50Hz bass boost up to +12dB)
General
- Power Requirements: 14.4 V.DC (9 - 16 V allowable)
- Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
- High Level Input with automatic power on
- Frequency Response: 10Hz – 40kHz
- THD+N (@ 10W into 4 Ohms): <0.03%
- Damping Factor: >100 (speaker channels) / > 750 (subwoofer channel)
- Weight: 3.2kg
Dimensions
- Heat Sink (WxHxD) mm: 302 x 57 x 210
