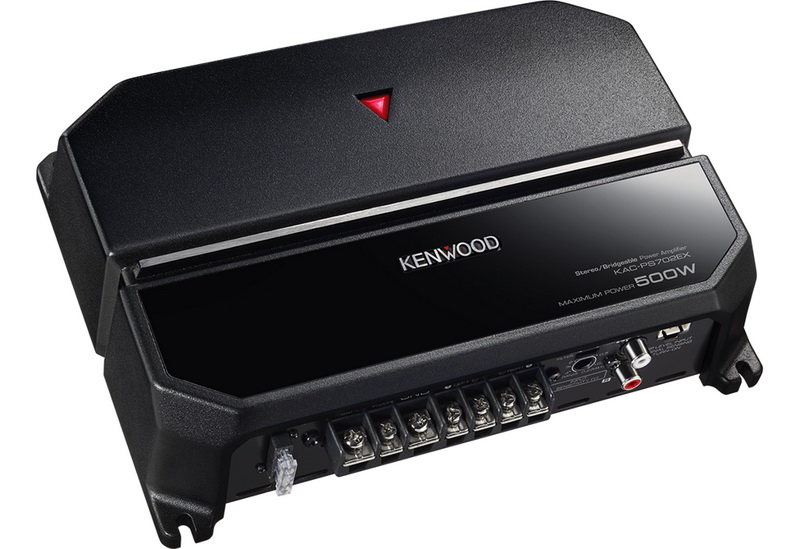

KAC-PS702EX
Key Features
Performance Standard Serie
Stereo or mono setup
500W Maximum output power
Built-in Low-pass filter
Signal Sensing Turn-on
Speaker level input
Power MOS-FET switching power supply
Die cast aluminium heat sink
Amplifier Features
|
Load Capability |
2Ω Stable |
|
Maximum power output |
500W |
|
Rated power output (4Ω) |
70W x 2 (4Ω) |
|
Rated power output |
60W x 2 (4Ω) |
|
Bridged power output (4Ω) |
170W x 1 |
|
CEA-2006 Compliant |
Yes |
|
Low-pass Filter |
Yes |
|
Switched Mode Power supply |
Yes, MOS-FET |
|
Signal Sensing Turn-on |
Yes |
|
Line in |
2 RCA's |
|
Speaker level Input |
Yes |
|
Single Side Terminals |
Yes |
|
Die-Cast Aluminium Heat Sink |
Yes |
Amplifier-Specifications
|
Rated power output (4Ω, 14,4V) |
70W x 2 (20Hz ~ 20000Hz, 1%THD) |
|
Rated power output (2Ω, 14,4V) |
85W x 2 (1000Hz, 1%THD) |
|
Rated power output (CEA-2006) |
70Watts RMS x 2 at 4 ohms and 1% THD |
|
Low-pass Filter |
80Hz (-18dB/oct) |
|
RCA Input Sensitivity |
0.2 ~ 5V |
|
Speaker Level Input Sensitivity |
4 ~ 12V |
|
Input Impedance |
10kΩ |
|
Signal to Noise Ratio |
100dB |
|
Signal to noise ratio (CEA-2006) |
80dBa (Reference: 1 Watt into 4 Ohms) |
|
Frequency response (+0dB, -3dB) |
20Hz ~ 50Hz |
|
Operating voltage |
14.4V (11V ～ 16V allowable) |
|
Maximum current consumption |
15A |
|
Dimensions (WxHxD) |
230 x 56 x 167(mm), |
|
Weight |
1.4kg |
