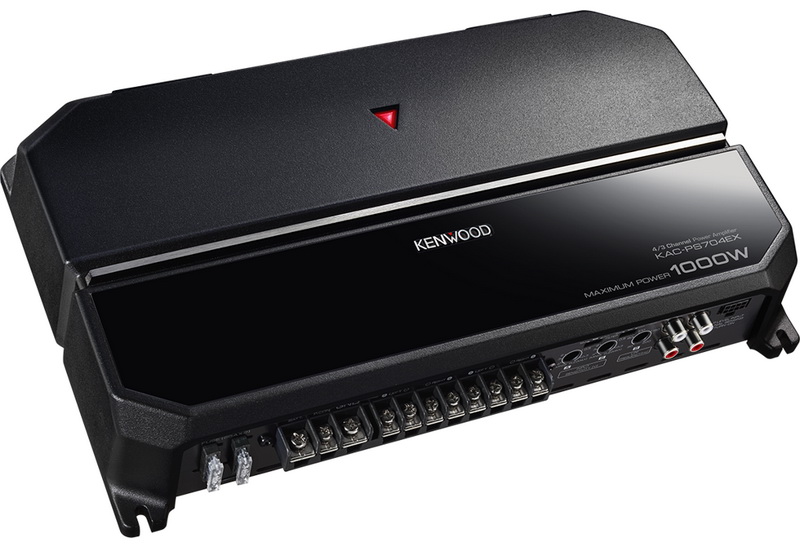

KAC-PS704
Key Features
Performance Standard Serie
4 channel or 3 channel (2 channel + Sub) setup
1000W Maximum output power
Built-in Variable Low-pass filter
Built-in High-pass filter (80Hz: ON/OFF)
Signal Sensing Turn-on
Speaker level input
Power MOS-FET switching power supply
Die cast aluminium heat sink
Cooling fan
Amplifier Features
|
Load Capability |
2Ω Stable |
|
Maximum power output |
1000W |
|
Rated power output (4Ω) |
70W x 4 (4Ω) |
|
Rated power output |
100W x 4 (2Ω) |
|
Bridged power output (4Ω) |
200W x 2 |
|
CEA-2006 Compliant |
Yes |
|
Low-pass Filter |
Yes |
|
High-pass Fliter |
Yes |
|
Switched Mode Power supply |
Yes, MOS-FET |
|
Cooling Fan |
Yes |
|
Signal Sensing Turn-on |
Yes |
|
Line in |
4 RCA / Speaker level |
|
Speaker level Input |
Yes |
|
Single Side Terminals |
Yes |
|
Die-Cast Aluminium Heat Sink |
Yes |
Amplifier-Specifications
|
Rated power output (4Ω, 14,4V) |
70W x 4 (20Hz ~ 20000Hz, 1%THD) |
|
Rated power output (2Ω, 14,4V) |
100W x 4 (1000Hz, 1%THD) |
|
Rated power output (CEA-2006) |
70Watts RMS x 4 at 4 ohms and 1% THD |
|
Low-pass Filter |
50~200Hz (24dB/oct)(B-Channel) |
|
High-pass Fliter |
80Hz (-12dB/oct)A-channel only |
|
RCA Input Sensitivity |
0.2 ~ 5V |
|
Speaker Level Input Sensitivity |
4 ~ 12V |
|
Input Impedance |
10kΩ |
|
Signal to Noise Ratio |
100dB |
|
Signal to noise ratio (CEA-2006) |
80dBa (Reference: 1 Watt into 4 Ohms) |
|
Frequency response (+0dB, -3dB) |
20Hz ~ 50Hz |
|
Operating voltage |
14.4V (11V ～ 16V allowable) |
|
Maximum current consumption |
32A |
|
Dimensions (WxHxD) |
335 x 56 x 204(mm), |
|
Weight |
2.6kg |
