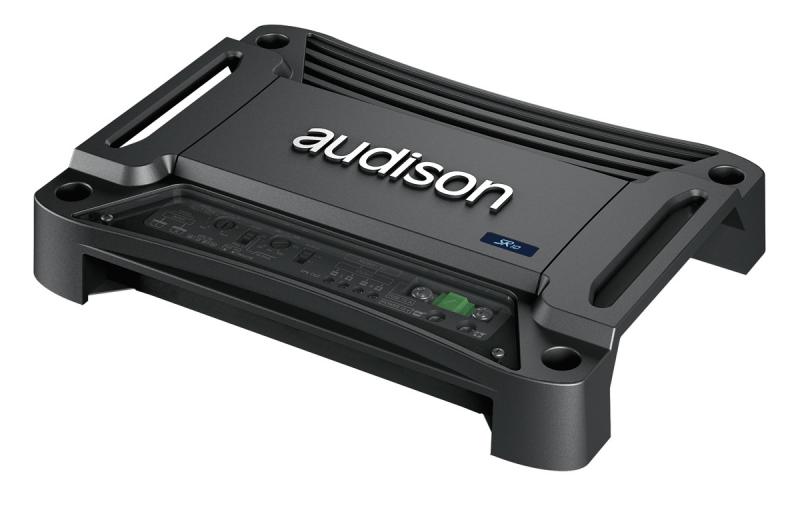

SR 1D

SR 1D is a compact mono digital amplifier.
With a full configurable by-pass crossover and PRE OUT coming from the hi-level speaker inputs, it is perfect to drive a subwoofer in an OEM factory upgraded system.

Τεχνικές Πληροφορίες  PDF Αρχείο

Power Output
Load Imp. Mono
4 Ω 280 W x 1
2 Ω 460 W x 1
1 Ω 640 W x 1

1 PRE-OUT pass-through from high level SPEAKERS-IN input
2 Removable panel to hide and protect controls
3 Monoblock aluminium heatsink construction
4 Fanless convection cooling system
5 Strip fuse located on the control panel for easy replacement
6 Connections:
• Power supply terminals accepts 7 mm diameter (4 AWG) cable
• Speaker terminals accepts 4.5 mm diameter (8 AWG) cables
• Hi Level speaker and remote turn-on terminals equipped
with removable connectors with screw fastening
7 “D” class topology, delivering 280W at 4 ohms and 640W
power at 1 ohm
8 Phase control switch
9 Selectable Subsonic Filter
10 Bass Boost Filter
11 Continuosly adjustable LO-pass 24dB
