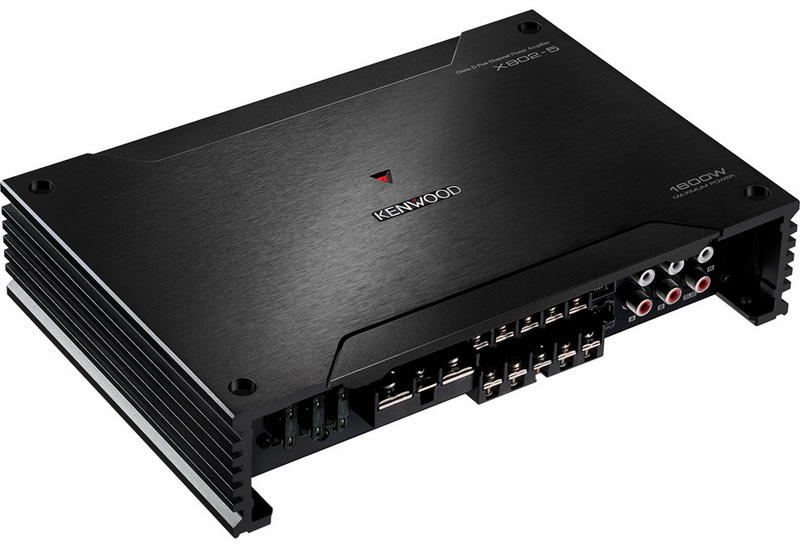

X802-5 X-Series
Key Features
D-class digital power amplifier
Variable high & low pass filter
Speaker Level Input
Signal sensing Turn-on
2 ohms load capability
CEA-2006 compliant
Hi-Res Audio compliant

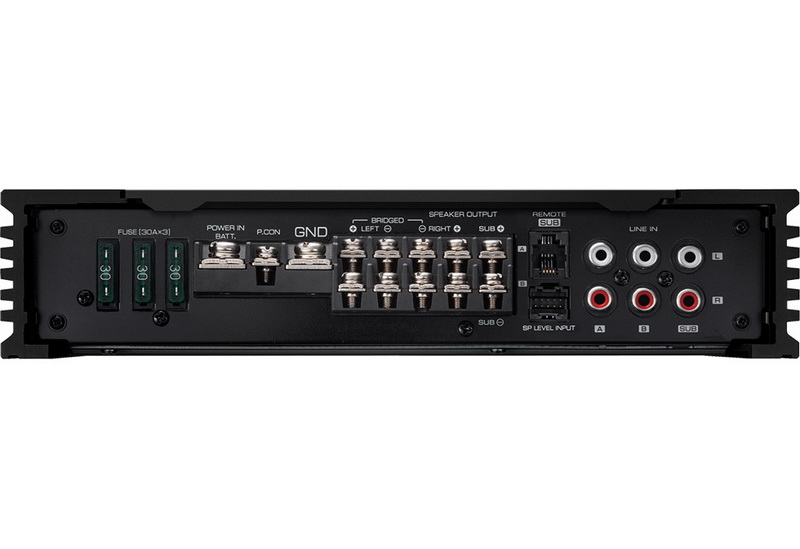

One side terminals for smart installation
Screw-type terminals
Amplifier Features
|
Class D Amplifier |
Yes |
|
Full Range Digital Amplifier |
Yes |
|
Load Capability |
2Ω Stable |
|
Rated power output (4Ω) |
50W x 4 (4Ω) |
|
Rated Subwoofer power output (4Ω) |
300W x 1 |
|
Rated power output |
75W x 4 (2Ω) |
|
Rated Subwoofer power output (2Ω) |
500W x 1 |
|
Bridged power output (4Ω) |
150W x 2 |
|
CEA-2006 Compliant |
Yes |
|
Low-pass Filter |
Yes |
|
High-pass Fliter |
Yes |
|
Switched Mode Power supply |
Yes, with Power MOS-FET |
|
Signal Sensing Turn-on |
Yes |
|
Speaker level Input |
Yes |
|
Single Side Terminals |
Yes |
|
Chassis |
Extruded aluminum het sink design |
|
Removable Coverplate |
Yes |
Amplifier-Specifications
|
Rated power output (4Ω, 14,4V) |
50W x 4 (20Hz ~ 20000Hz, 1%THD) |
|
Rated subwoofer power output (4Ω, 14,4V) |
300 W (20Hz - 200Hz, 1% THD) |
|
Rated power output (2Ω, 14,4V) |
75W x 4 (1000Hz, 1%THD) |
|
Rated subwoofer power output (2Ω, 14,4V) |
500W (100Hz, 1% THD) |
|
Rated power output (CEA-2006) |
50Watts RMS x 4 at 4 ohms and 1% THD |
|
Rated subwoofer power output (CEA-2006) |
300W |
|

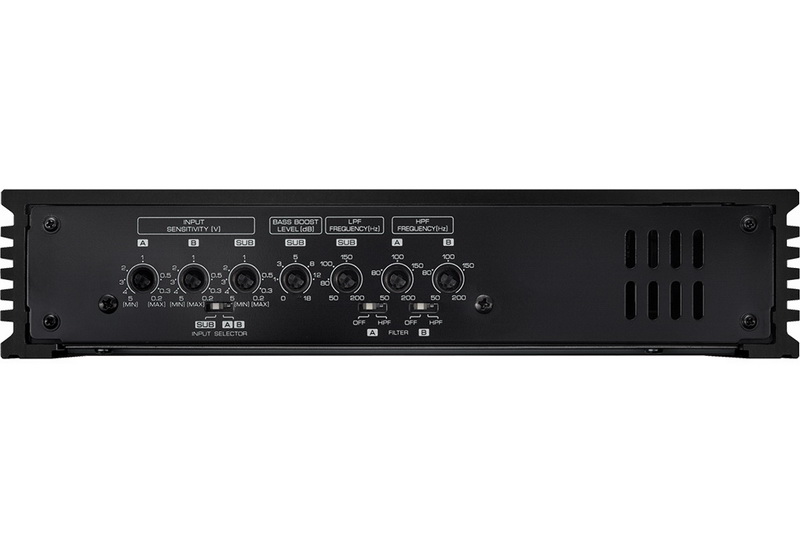

Low-pass Filter |
50~200Hz (-24dB/oct) |
|
High-pass Fliter |
50~200Hz (12dB/oct) |
|
Bass Boost Circuit |
40Hz, 18dB (B-Channel) |
|
RCA Input Sensitivity |
0.2 ~ 5V |
|
Speaker Level Input Sensitivity |
4 ~ 12V |
|
Input Impedance |
10kΩ |
|
Signal to Noise Ratio |
100dB |
|
Signal to noise ratio (CEA-2006) |
80dBa (Reference: 1 Watt into 4 Ohms) |
|
Frequency response (+0dB, -1dB) |
20Hz ~ 50000Hz |
|
Freq. resp. (+0dB, -3dB) (SUB) |
20Hz ~ 200Hz |
|
Operating voltage |
14.4V (11V ～ 16V allowable) |
|
Maximum current consumption |
42A |
|
Installation Size (WxHxD) |
248 x 53 x 169 (mm) |
|
Weight |
2.1kg |
