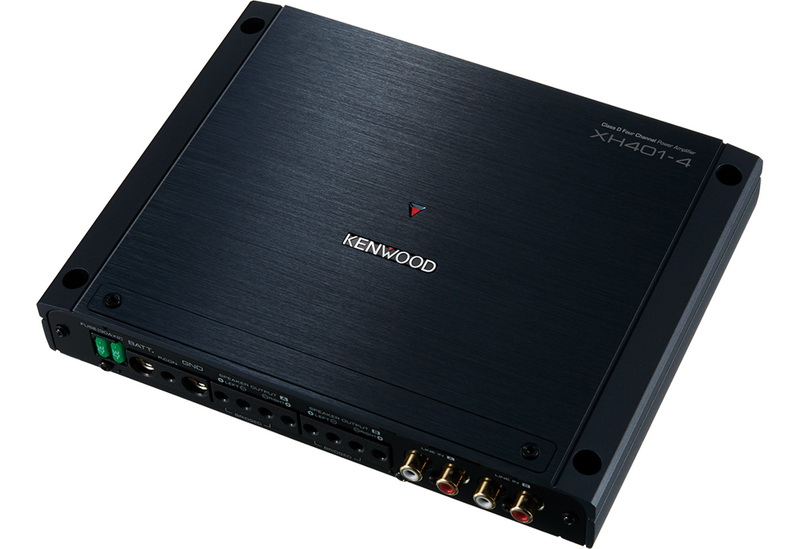

XH401-4 X-Series
Key Features
Class D 4-Channel Power Amplifier
CEA-2006 compliant
Hi-Res Audio compliant
75W x 4 RMS power output
Frequency Response 20Hz - 50kHz
Variable High-Pass Filter
Variable Low-Pass Filter
Speaker level input
Signal sensing turn-on
Wired remote included for B-channel
Amplifier Features
|
Class D Amplifier |
Yes |
|
Load Capability |
2Ω Stable |
|
Rated power output (4Ω) |
75W x 4 (4Ω) |
|
Rated power output |
75W x 2 + 200W x 1 (4Ω) |
|
Bridged power output (4Ω) |
200W x 2 |
|
CEA-2006 Compliant |
Yes |
|
Low-pass Filter |
Yes |
|
High-pass Fliter |
Yes |
|
Switched Mode Power supply |
Yes |
|
Power Indicator |
Multifunctional |
|
Signal Sensing Turn-on |
Yes |
|
Protection function |
Yes |
|
Line in |
4 RCA / Speaker level |
|
Input Selector |
A/AB |
|
Speaker level input via line-in (RCA) |
A-ch & B-ch |
|
Single Side Terminals |
Yes |
|
Chassis |
Aluminum Die-cast |
|
Yes |
Amplifier-Specifications
|
Rated power output (4Ω, 14,4V) |
75W x 4 (20Hz ~ 20000Hz, 1%THD) |
|
Rated power output (2Ω, 14,4V) |
100W x 4 (1000Hz, 1%THD) |
|
Rated power output (4Ω, 14,4V) |
200W x 2 (1000Hz, 1%THD) |
|
Rated power output (CEA-2006) |
75Watts RMS x 4 at 4 ohms and 1% THD |
|
Low-pass Filter |
50~200Hz (-12dB/oct) |
|
High-pass Fliter |
50~200Hz & 2,5~10kHz (-12dB/oct) |
|
RCA Input Sensitivity |
0.2 ~ 5V |
|
Speaker Level Input Sensitivity |
4 ~ 12V |
|
Input Impedance |
10kΩ |
|
Signal to Noise Ratio |
100dB |
|
Signal to noise ratio (CEA-2006) |
76dBa (Reference: 1 Watt into 4 Ohms) |
|
Frequency response (+0dB, -3dB) |
20Hz ~ 50000Hz |
|
Frequency response (+0dB, -1dB) |
20Hz ~ 40000Hz |
|
Operating voltage |
14.4V (11V ～ 16V allowable) |
|
Maximum current consumption |
37A |
|
Dimensions (WxHxD) |
220 x 35 x 169(mm), |
|
Weight |
1.5kg |
