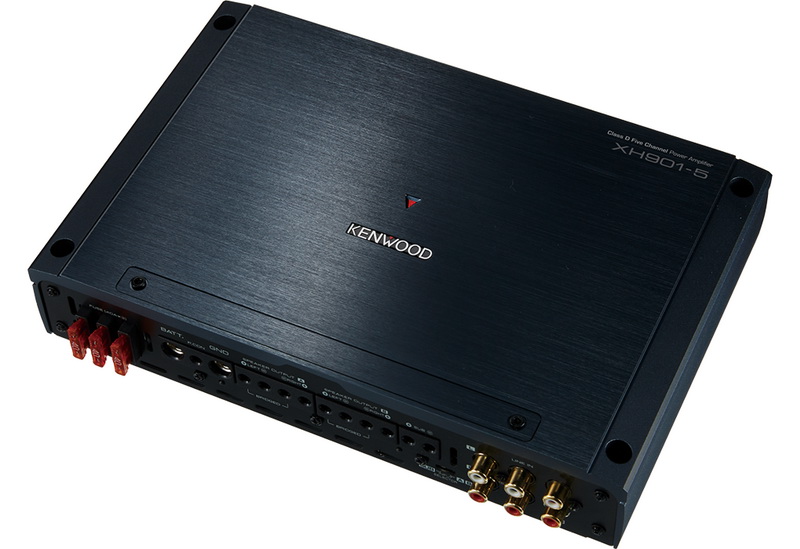

XH901-5 X-Series

Class D Amplifier

Yes

Load Capability

2Ω Stable

Rated Power output

60W x 4 + 40W x 1 (4Ω)

Rated Power Output

75W x 4 + 600W x 1 (2Ω)

CEA-2006 Compliant

Yes

Low-pass Filter

Yes

High-pass Fliter

Yes

Bass Boost Circuit

Yes

Dual Sigma Drive

Yes

Switched Mode Power supply

Yes

Cooling Fan

Yes

Signal Sensing Turn-on

Yes

Protection function

Yes

Line in

6 channel RCA (Gold Plated)

Input Selector

SUB/AB

Speaker level input via line-in (RCA)

A-ch & B-ch

Single Side Terminals

Yes

Die-Cast Aluminium Heat Sink

Yes

Yes

Rated power output (4Ω, 14,4V)

60W x 4 (20Hz ~ 20000Hz, 1%THD)

Rated subwoofer power output (4Ω, 14,4V)

400 W (20Hz - 200Hz, 1% THD)

Rated power output (2Ω, 14,4V)

75W x 4 (1000Hz, 1%THD)

Rated subwoofer power output (2Ω, 14,4V)

600W (100Hz, 1% THD)

Rated power output (CEA-2006)

60Watts RMS x 4 at 4 ohms and 1% THD

Rated subwoofer power output (CEA-2006)

400W

Low-pass Filter

50~200Hz (-12dB/oct)

Low-pass filter (sub channel)

50Hz - 200Hz (12dB/oct)

High-pass Fliter

50~200Hz & 2,5~10kHz (-12dB/oct)

Bass Boost Circuit

40Hz (0~18dB/oct) Sub-ch

Bass Boost Frequency

40Hz

RCA Input Sensitivity

0.2 ~ 5V

Speaker Level Input Sensitivity

4 ~ 12V

Input Impedance

10kΩ

Signal to Noise Ratio

100dB

Signal to noise ratio (CEA-2006)

76dBa (Reference: 1 Watt into 4 Ohms)

Frequency response (+0dB, -3dB)

20Hz ~ 50000Hz

Frequency response (+0dB, -1dB)

20Hz ~ 40000Hz

Operating voltage

14.4V (11V ～ 16V allowable)

Maximum current consumption

80A

Dimensions (WxHxD)

260 x 51 x 169(mm),

Weight

2.4kg
