F300BETX
4.2L V6 OFFSHORE OUTBOARDS
Digital: f300 / f250 / f225
Mechanical: f250 / f225
FOR THOSE WHO LIKE THEIR V6 LIGHTER, FASTER AND FIERCER.
Who says you have to put on the pounds to add more horses? Meet Yamaha’s Next Generation of V6 4.2L Offshore outboards, now available for both mechanical and digital controls (F250 & F225). These award winners are packed with Yamaha’s legendary reliability, which is why so many anglers won’t trust anything else a hundred miles out.

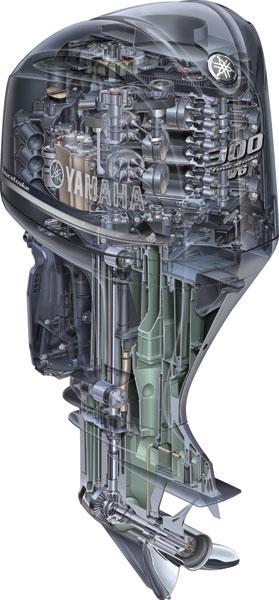

See the engineering inside the V6 4.2L
Take a quick look at the engineering feats inside the Next Generation of V6 Offshore outboards.
Hear from offshore enthusiasts
See what offshore enthusiasts are saying about Yamaha’s Next Generation of V6s.
4.2L V6 Offshore Control
Light, powerful, fast & fuel efficient.
Yamaha engineers have managed to push our V6 4.2L Offshore technology even further, making this new breed of outboards:
Leading Time-to-Plane
F300 Specifications
Engine Type V6 (60º)
Displacement 4.2L (254 ci)
Bore x Stroke 96 x 96mm (3.78 x 3.78 in)
Prop Shaft Horsepower 300hp at 5500 rpm (F/LF300)
Compression Ratio 10.3:1
Fuel Induction DOHC Fuel Injection VCT
Exhaust Through Propeller
Intake Single Throttle Valve
Ignition TCI Micro Computer
Spark Plug LFR6A-11-00-000
Alternator Output 70 Amp
Starting System Electric
Lubrication Wet Sump
Engine Oil Capacity 6.3L/6.0L w/with filter
Full Throttle RPM Range 5000 ~ 6000 rpm
Cooling Water/Thermostatic Control
Recommended Engine Oil Yamalube® 4M (See owner's manual)
Recommended Fuel Regular Unleaded (Minimum Pump Octane 89)
Recommended Fuel Filtration Yamaha 10-Micron Fuel/Water Separating Filter (external)
Ethanol Blend Limit 10% Maximum
Gear Ratio (21:12) 1.75:1
Gear Shift Forward, Neutral, Reverse
Shaft Length X = 25" U = 30"
Degree of Tilt 67°
Degree of Trim -3° through +16°
C.A.R.B. Rating 3-Star
Dry Weight 25" shaft / 255 kg (562 lbs) ; 30" shaft / 259 kg (571 lbs)
Mounting Centers 28.5"
Steering Angle (maximum) 32° from center, either direction
Warranty 3-Year Pleasure, 3-Year Government, 1-Year Commercial
Their class-leading, 4.2L big-bore design means they have the best time-to-plane in their class. When cruising at 4000 RPM, the F300’s speed is up to 19% faster than other 300hp competitors.
Class-Leading Displacement
This next generation of V6 Offshore outboards features the first-ever marine application of plasma-fused sleeveless cylinders. This allowed engineers to increase the displacement to a class-leading 4.2 liters, without enlarging the outer diameter of the cylinder, keeping the motor light. The result is an outboard that is not only the lightest in its class, but that also has the largest displacement. No wonder it’s 19% faster than many other 300hp competitors.
Groundbreaking Fuel Economy
These V6s feature up to 17% better long-range fuel economy at 3500 RPM than comparable 300hp four strokes, thanks in part to a single, electronically controlled throttle valve, precision multi-point fuel injection and micro-textured cylinder walls.
17% more fuel efficient
Light Weight / Industry-First Technology
Through incredible innovations like plasma-fused sleeveless cylinders, Yamaha engineers have managed to shave every possible ounce from these outboards, without sacrificing a shred of durability or reliability. As a result, they’re up to 73 pounds lighter than other V6 outboards in their class.
Intuitive Control

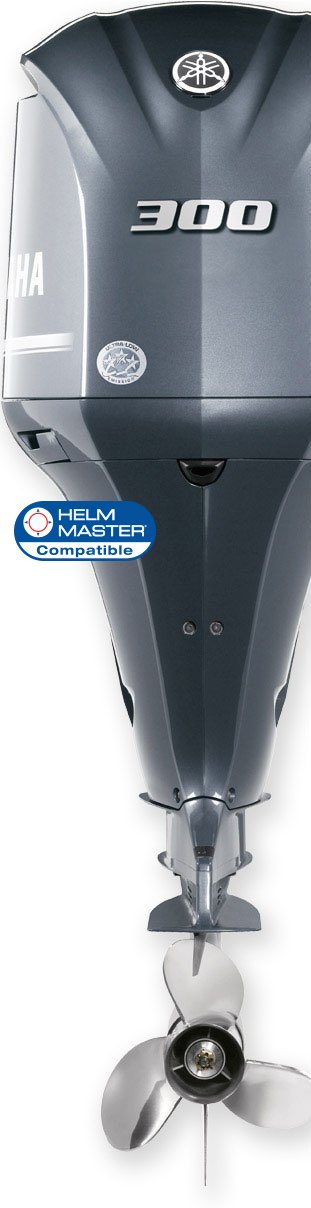

Available with the Helm Master® fully integrated boat control system in twin-, triple and quad-outboard configurations.
V6 4.2L Offshore Features
S = Standard Features ○ = Optional Equipment ● = Available with or without R = Required C = Compatible
Power/Performance F300 Digital F250 Digital F250 Mech F225 Digital F225 Mech
Command Link® Digital Electronic Controls R R R R R
High Output Four Stroke V6 Outboard S S S S S
Plasma-Fused Sleeveless Cylinders S S S S S
Narrow 60° Block Design S S S S S
Variable Camshaft Timing S S S S S
Long Track Induction System S S S S S
Electronic Multi-Point Fuel Injection S S S S S
6 Independent Fuel Injectors S S S S S
4 Large Radius Valves Per Cylinder S S S S S
High Intake Valve Lift S S S S S
Double Overhead Camshafts S S S S S
In-Bank™ Exhaust S S S S S
Exhaust Pressure Reduction System S S S S S
Compact, Lightweight Design S S S S S
Reliability/Durability F300 Digital F250 Digital F250 Mech F225 Digital F225 Mech
TCI Microcomputer S S S S S
Electronic Single Throttle Valve (75mm) S S S S S
Direct Drive System S S S S S
Wet Sump Lubrication S S S S S
Engine Warning System S S S S S
Sacrificial Anodes S S S S S
Water Cooled Rectifier/Regulator S S S S S
Water Separator S S S S S
Direct Ignition S S S S S
YDC-30 Aluminum Alloy S S S S S
Phaze Five™ Paint System S S S S S
Electro-deposited Powerhead Paint Process S S S S S
Top Mounted Electrical S S S S S
High Output Alternator S S S S S
SST Drive, Prop, Shift Shafts S S S S S
SST Steering Tube S S S S S
Magnetic Drain Plug S S S S S
Dual Water Intake Gearcase S S S S S
Alumite Exhaust Annodization S S S S S
Water Draining Air Intake Duct S S S S S
Convenience/Control F300 Digital F250 Digital F250 Mech F225 Digital F225 Mech
Command Link® Plus Display Gauge Compatibility S S S S S
Command Link S S S
Mechanical S S
Power Trim and Tilt S S S S S
Freshwater Flush S S S S S
Easy Maintenance S S S S S
Vibration Reduction Mounting System S S S S S
Reversable PTT Switch S S S S S
Counter Rotation "LF" Model ○ ○ ○ ○ ○
Yamaha Diagnostic System C C C C C
Multi-Charge Monitoring System S S S S S
Single Cogged Timing Belt System S S S S S
S = Standard Features ○ = Optional Equipment ● = Available with or without R = Required C = Compatible
