Alpine X701DF -Freestyle 7-inch

Περιγραφή προϊόντος

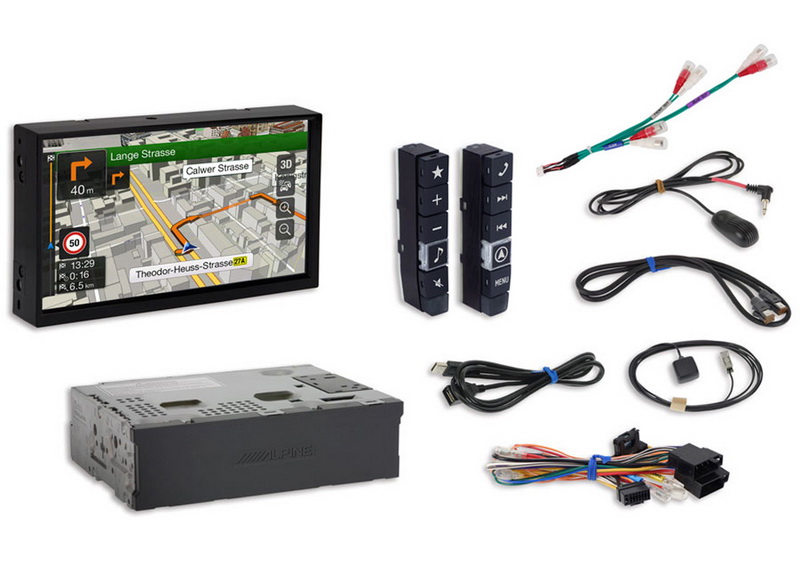

All parts included

Both Freestyle products include a high-resolution touch-screen, fully customizable key panels, a media receiver, GPS antenna, wiring kit, USB cable and a Golf 6 frame. This gives the installer all parts needed for a good custom installation.

Interchangeable keys

The 2 key panels can be installed horizontally or vertically, depending on the installation position. The key positions can also be assigned individually due to the interchangeable buttons. This has the advantage that key layout can be adjusted to personal preferences, as well as for left-hand or right-hand steering wheel configuration. We recommend for example, that the volume buttons are always installed on the same side than the steering wheel to be easily reachable.

Key caps

The key caps can be easily removed to change their position. The can also be rotated to allow vertical or horizontal installation.

Adjustable illumination

You can easily adjust the illumination colour of the control buttons to 6 different colours (white, red, yellow, amber, blue and green) to match the Freestyle system to your dashboard illumination. You can also adjust the brightness intensity in 2 levels. You can also adjust the display background accordingly.

1 DIN navigation / media receiver

The media receiver unit is very compact and has exact 1DIN measurements. This makes it quite easy to find a suitable space behind the dashboard or the centre console to install the unit.

DAB+ Digital Radio

The built-in DAB/DAB+/DMB tuner uses the most advanced digital technology to deliver radio reception in outstanding, noise-free sound quality. DAB+ also offers many other advantages over traditional FM radio: select from a much wider range of radio stations and after an initial station scan you can easily select your desired channels from an alphabetic and genre list of available stations. Please note that a DAB antenna needs to be purchased separately.

Connect your iPod / iPhone

Both Freestyle systems are fully “works with iPod / iPhone” compatible. If you connect your Apple device via the Lightning or 34-pin Apple connector you will be able to enjoy songs, audio books and podcasts through your Alpine system. You can search content by songs, artists, albums, genre, composer and more. Best of all this happens in real time without any delay, so you will get the same smooth and fast operation experience on your Alpine screen that you are used to of your Apple device. All Apple iPods and iPhones with a 34-pin or Lighting connector are supported, including the iPhone 7 and iPhone 7 Plus. Your Apple device also charges while it is connected.

Spotify (by Alpine Connect)

Another useful app included in Alpine Connect. Spotify let’s you enjoy millions of songs through your Alpine system. This service requires a Spotify premium account.

Extensive sound tuning options

The X701D-F and X901D-F put the power of advanced sound processing in your car with BASS ENGINE SQ to maximise bass sound and overall tone balance, plus lots of custom tuning functions like Digital Time Correction and Dual HD EQ. Best of all, you can control them easily from your smartphone with the Alpine TuneIt App. 24-Bit DAC and 4-volt PreOuts, too!

Parking assistance technology

The optional rear-view camera system provides parking safety with cutting-edge camera technology. The rear-view camera automatically activates when reversing and also mutes the audio so you can hear the parking sensor signals. You not only have a clear view to the rear, you can also see useful distance guides for easier parking. You can even activate a trailer hitch ball guide to make hooking up your trailer much easier.

Advanced Address Input

You can input postal codes for all European countries, including 7-digit UK codes, which makes searching for addresses quicker. The system even reads partial addresses. Select your own language from 33 different keypads, including Cyrillic and Greek.

Τεχνικά Χαρακτηριστικά

FEATURES

Tuner

• Memory Presets: Preset Stations (FM: 24 / MW: 6 / LW: 6)
• Memory: Auto Memory
• Seek Mode: Local / DX Selection

RDS

• RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

DAB Tuner

• DAB+ Tuner Built-in
• DAB+/DMB Supported
• DAB+ Slideshow Service
• DLS (Dynamic Label Service)
• DAB Service Following
• RDS Fallback (where available)
• Service Preset: 18 Preset Memory
• Auto Ensemble/Service Memory
• Service Search Function
• PTY Search Function
• Alphabet Search Function
• Antenna Power Supply Selection

BLUETOOTH®

• Built-in BLUETOOTH® Module
• Wide Band Speech Technology
• HFP (Hands-Free Profile) Compatible
• BT HFT multi point implementation
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
• Advanced BLUETOOTH® Technology
• Connection: SSP (Simple Secure Pairing) Supported
• Individual Profile Connection Hands Free Phone and Music Streaming
• Phone Book: Phone Book Synchronization
• Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
• Device Name Display
• Auto Answer
• Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
• Redial Function
• Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
• DTMF (Touch-Tone) Function
• Signal Strength Indicator
• Battery Level Indicator
• Menu Language Selection: 24 Languages
• Firmware Updatable
• Microphone included

Made for iPod® / iPhone®

• Compatibility for iPod/iPhone: Made for iPod touch 5th/4th/3rd/2nd/1st Gen., iPod nano 7th/6th/5th/4th/3rd/ Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone 7 and iPhone 7 Plus, iPhone 6 and 6 Plus, iPhone5S, iPhone5C, iPhone5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G
• Connection: KCU-461iV / KCU-471i Required (Sold separately)
• Music & Video Playback Compatible with KCU-461iV only
• Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
• Alphabet Search
• Artwork Display
• Direct Up / Down: Playlist / Artist / Album / Genre / Composer
• M.I.X. (Shuffle) Play: Song, Albums, All
• Repeat
• Battery Charging

Navigation Function

• Map Coverage: 48 Countries (Western and Eastern Europe)
• Menu Language: 29 Languages
• Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
• Advanced Address Search
• Post Code Search
• Free Form Search
• Partial Name Search
• Advanced POI Functions
• Smart Routes: Smart Routes using historic traffic patterns
• Advanced Route Planning
• Eco Route Search
• 7 Alternative Route Recommendation
• Advanced TMC Mode
• Map Display Mode: 2D Heading Up, 2D North Up, 3D
• 3D City Mode: 3D Building/Icon Display
• Elevation Map Display: 3D maps with elevation mode
• 3D Motorway Junction View: Junction View with Sign Post
• Drive Lane Suggestion
• Tunnel Mode
• Highway Mode
• Voice Guidance Mixing
• Text-to-Speech
• Direct Phone Call from POI data
• 3 Positioning Sensors: GPS, Gyroscope, Vehicle Speed Pulse

USB Media Connection

• USB Connection: USB Extension Cable Included
• Music and Video Playback: FLAC/MP3/WMA/AAC/AVI/MP4/MKV Playback
• File / Folder Name Search
• Tag Info Search
• Folder Up / Down
• M.I.X. Random Play
• Repeat

Sound Tuning

• Bass Engine SQ
• Bass Engine™ Pro
• Subwoofer Level Adjustment
• Subwoofer Phase Select
• 4V High Voltage PreOut
• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• Dual HD EQ (9-band Parametric Equalizer front/rear)
• 6 Channel Digital Time Correction
• Digital Crossover Setting
• Customized Sound Setting by Car Type
• MediaXpander HD
• Application Volume Level Setting
• Sound Setting Data Download
• Easy, Step-by-Step Sound Customization
• Alpine TuneIt App ready

General

• Power Output: 4 x 50 W High Power Amplifier
• Advanced Power IC
• Display: 7′′ Capacitive WVGA High Resolution Display
• White LED Backlighting System
• 50/50 Split Screen: Left / Right Position Changeable
• Control Type: Touch, Drag, Flick
• Illumination Buttons Colour Setting: White (Initial setting) / Blue / Red / Green / Amber / Yellow
• Display Colour Setting: Blue (Initial setting) / Light blue / Aqua blue / Red / Green / Amber / Yellow / White
• Brightness: adjustable in 2 levels
• Display and button illumination independently selectable
• My Favorites Function
• Automatic Setting Change for 2 Users
• High Grade Audiophile Design
• PreOut: 3 PreOuts (4V, Front / Rear / Subwoofer)
• AUX-In: 1 A/V AUX Input
• Aux-In cable included
• Steering Wheel Remote Control Function
• Remote Control Ready
• Navigation Guidance Mix
• Camera Connection & Built-in Controls for Multi-View Cameras
• Multi camera I/F (KCX-C250MC) ready
• Camera Guide Line Adjustment
• Camera Trailer Hitch guidance implementation
• Rearview Camera Display Automatic Boot-up
• Simple Mode & Info Mode Display Selection
• Visual EQ
• Live Contrast Adjustment
• Menu Language: 24 Languages (for AV / Bluetooth), 29 Languages (Navigation Menu and Voice Guidance)
• Clock
• Auto Dimmer
• Anti-theft security code
• Firmware Updatable
• Power Antenna Lead
• Remote Turn-On
• HDMI Input (HDMI connector included)
• HDMI splitter I/F (KCX-630HD) ready
• Engine Start-Stop unaffected
• CAN Connection Interface Included
• Ready for optional DVD Player DVE-5300

Map & Database

• Online Map Update

Installation

• Freestyle Kit Solution included, contains 7-inch screen, face plate, keys, key harness, display cables, Microphone, remote cable harness
• Interfaces available
