Alpine X702D-F

Περιγραφή προϊόντος

The Alpine Freestyle systems have been created to cover the growing demand for a custom installation system. Freestyle can be used especially for vehicles where no regular radio or navigation fits and no solutions are available. It is then up to the skill of the installer to use the Freestyle system to create a great solution for the vehicle.

The 2nd generation Alpine Style system offers extensive media options including Apple CarPlay and Android Auto compatibility, and cutting edge iGo Primo Nextgen navigation with TomTom maps and 3 years free-of-charge map updates. You also get high-end sound quality and sound tuning options with this great system.

Τεχνικά Χαρακτηριστικά

FEATURES

• Power Output: 4 x 50 W High Power Amplifier
• Advanced Power IC
• Display: 9-inch Capacitive WVGA High Resolution Display
• White LED Backlighting System
• 50/50 Split Screen: Left / Right Position Changeable
• Control Type: Touch, Drag, Flick
• My Favorites Function
• Automatic Setting Change for 2 Users
• High Grade Audiophile Design
• 3 PreOuts (2 V , Front / Rear / Subwoofer)
• AUX-In: 1 A/V AUX Input (3.5mm micro jack)
• Steering Wheel Remote Control Function
• Vehicle Display Interface Ready (UART connection)
• Remote Control Ready
• Navigation Guidance Mix
• Camera Connection & Built-in Controls for Multi-View Cameras
• Camera Guide Line Adjustment
• Rearview Camera Display Automatic Boot-up
• Simple Mode & Info Mode Display Selection
• Visual EQ
• Live Contrast Adjustment
• Menu Language: 24 Languages (for AV / Bluetooth), 29 Languages (Navigation Menu and Voice Guidance)
• Clock
• Auto Dimmer
• Anti-theft security code
• Firmware Updatable
• Power Antenna Lead
• Remote Turn-On
• HDMI Input (Alpine Special HDMI connector required)
• Engine Start-Stop unaffected
• Ready for optional DVD Player DVE-5300

SPECIFICATIONS

• Power Requirement: 14.4 V. DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 2 V / 10k ohms
• Maximum Mounting Angle: 30°

Dimensions

• Display cable length: 100 cm
• Key harness length: 25 cm
• Din Size: 1DIN chassis and 7” Capacitive Touch Screen
• Chassis Size (W x H x D) mm: 178 x 50 x 164 mm
• Monitor size (W x H x D) mm: 172 x 97.7 x 33.5 mm

Installation

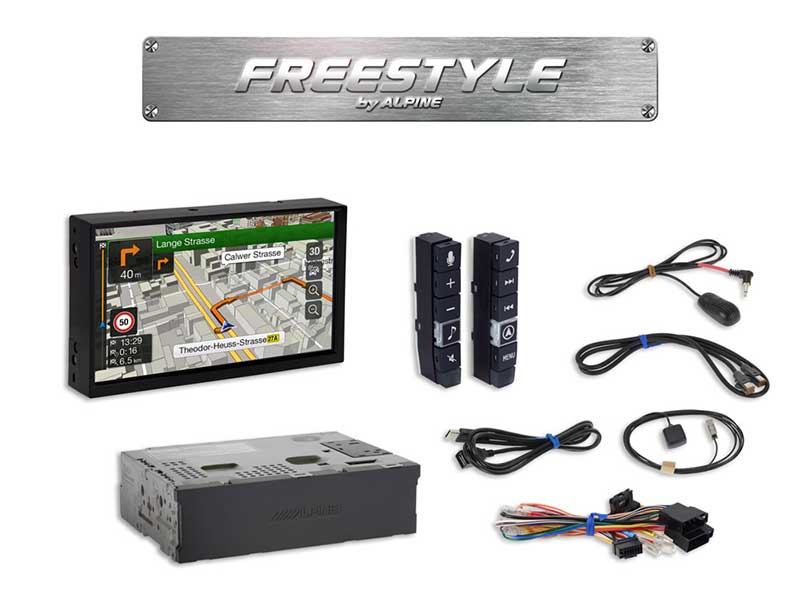

• Freestyle Kit Solution included, contains 7-inch screen, face plate, keys, key harness, display cables, Microphone, remote cable harness
• Interfaces available
